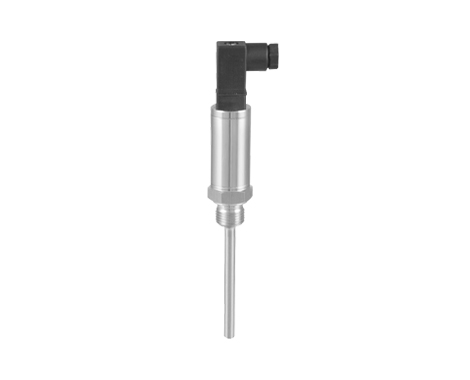

TK30 Series Economical Temperature Transmitter

Online Inquiry
Sample Application
Technical Support
Hotline:021-54430662

Introduction

Principle & Structure

TK30 economical temperature sensor is a compact, economical and durable temperature transmitter. It uses PT100 thermal resistance for temperature measurement. The signal is processed by the rear processing circuit and converted into standard industrial electrical signal output. The all-metal shell design enables this series of products to be used in various industrial occasions. The analog output types are 4...20mA or PT100, and a variety of connection methods can fully meet various specific installation needs.

main feature

economical product

Measuring range from -50°C…50°C to 0°C…200°C

compact

A variety of output methods are optional

Various process connections available

All stainless steel housing

application

Circulating water/coolant

Hydraulic and Pneumatic

Oil and gas industry

Machine made

water treatment

building automation

technical parameter

Supply voltage:					10…30Vdc (with current output) & PT100 without power supply
Current consumption:
2 -wire type:					Consistent with the output signal current (4…20mA)
3 -wire type:					≤20mA
2 -wire current type analog output
output type:					2 -wire 4…20mA
Load RA(Ω) :					RA≤(Us-10)V/0.02A
Linearity:					≤±0.5% of range
sensor:					PT1000 Class A
Accuracy:					≤±0.5% of range
Stability (annual drift):					≤±0.25% of range
temperature
Medium temperature ( measurement range ) :					-50…50°C/0…100°C/0…150°C/0…200°C
Ambient temperature:					-20…85°C
Material
case:					Stainless steel 1.4301(304)
Media contact part:					Stainless steel 1.4435 (316L)
Pressure resistance:					40bar
Protection class:					IP65 ( solenoid valve plug ), IP67 (M12×1 connector )
Way out:					M12×1 connector /DIN mini plug DIN43650

Selection table

TK30-

Economical temperature sensor

output

PT100 output

4...20mA output

Probe diameter

Φ6 Pressure 40 bar (*)

Threaded connection

G1/2 male thread (*)

G1/4 male thread

Probe length L

15mm

50mm

100mm

Electrical outlet

M12*1 Aviation Connector

DIN mini connector (DIN43650)

temperature range

For details, please refer to "Regular Range Code Table"

This PDF does not contain the complete data of the selection table. For selection, please contact the sales staff or email to sales@kewill-auto.cn to obtain the complete sample.

Remarks: This series is an economical product series and does not accept customization other than the above selection table. If you have customized needs, you can choose our other conventional series.

Remarks: "*" is marked as stock standing or fast delivery

Optional: Cable Accessory A

CREAM-	M12 cable connector
		self binding post
		plug
			straight
			curved
				2m cable length
				5m cable length
				Required line length ( m )

Optional: cable accessory B

KEC-	Signal cable (DIN plug optional)
		2m cable length
		5m cable length
		Required line length ( m )
			ordinary cable
			shielded cable

Optional: Welding accessory C

KTW-	Welded base
		G1/2 base
		G1/4 base
		Shaped connection
			Stainless steel 1.4301(304)
			Stainless steel 1.4435 (316L)
			Customized Material Customized

Optional: protective sleeve D

KTC-	protective sleeve Cannula
		Stainless steel 1.4301(304)
		Stainless steel 1.4435 (316L)
		Titanium alloy Ti
		Hastelloy HB
		Probe and sealing surface lined with PTFE
			Length, thread, diameter are matched with the main product
			Separate size, thread, diameter by agreement

Prev ：TP21 PT100 RTD Temperature Sensor

Next：TK50 Series Integrated Temperature Sensor
