Principle & Structure

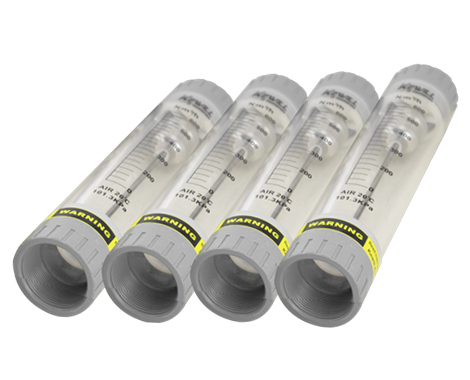

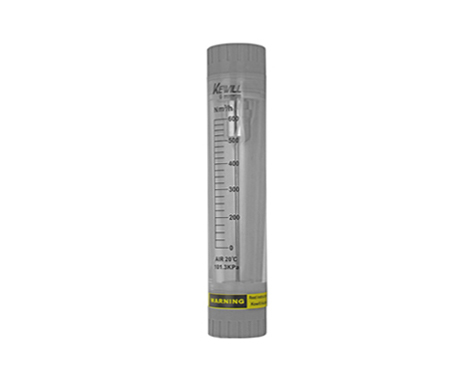

The float of the flowmeter operates on the principle of variable area and floats in a conical metering tube.
Features
Scale display unit can be customized GPM; L/M; Nm3/h
application
Gas-liquid dual-use, industrial automation / mechanical equipment / air compression industry / refrigeration and air conditioning.
| Measuring range: | See parameter table for details | ||||||||||||
| Accuracy: | ±4% of total scale | ||||||||||||
| Pressure resistance: | ≤6bar | ||||||||||||
| Average pressure loss: | 0.3bar(at 25L/min) | ||||||||||||
| Medium temperature: | 0~60℃ | ||||||||||||
| material | |||||||||||||
| pipeline: | Plexiglass | ||||||||||||
| Float: | 316L stainless steel SUS1.4310 | ||||||||||||
| seal: | viton rubber | ||||||||||||
| Connector: | ABS plastic | ||||||||||||
| FF20- | Pipeline float flowmeter | ||||
| Applicable pipe diameter | |||||
| Nominal diameter DN15 | |||||
| Nominal diameter DN20 | |||||
| Nominal diameter DN25 | |||||
| Nominal diameter DN32 | |||||
| Nominal diameter DN32 | |||||
| Connection method | |||||

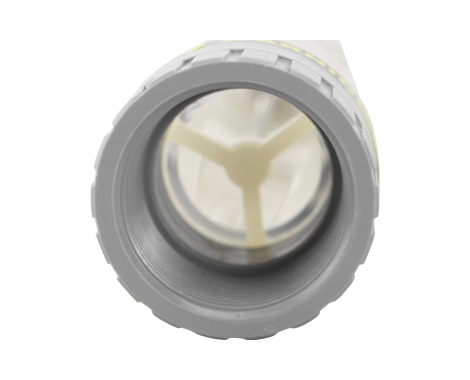

| internal thread | |||||
| External thread | |||||
| type of medium | |||||
| water-based medium | |||||
| Air | |||||
| Customized oil | |||||
| Display range interval | |||||
| See the range code table for details | |||||
| The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples. | |||||
