Introduction
Principle & Structure

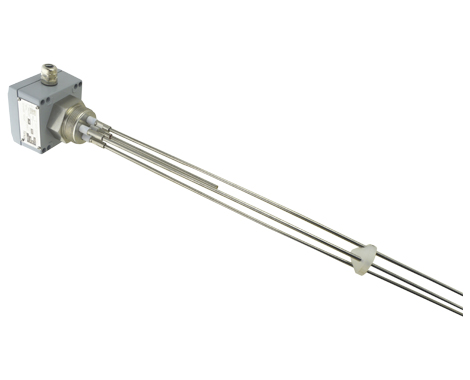

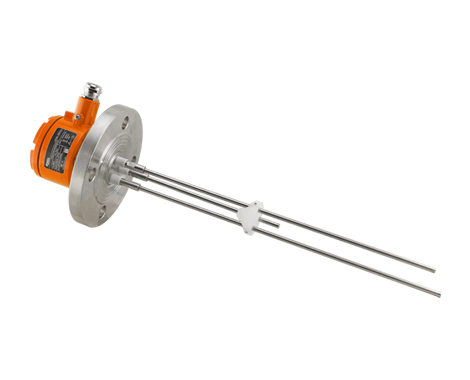

Electrode liquid level controllers are instruments used for liquid level detection and control. It consists of two parts, the liquid level detection electrode and the controller. LEV60 electrode liquid level controller is divided into two types: integrated type and split type. The integrated electrode liquid level controller is to put the circuit board of the controller into the junction box of the liquid level detection electrode to form an integrated structure; the split type is that the controller and the liquid level detection electrode are installed separately, and the controller is installed on the track in the control box. There are two forms of panel installation and control panel. According to different use environments, the liquid level detection electrodes can be divided into plastic shells and aluminum alloy explosion-proof shells. Nylon or PP polypropylene plastic connectors and stainless steel connectors are connected to the equipment, which can be selected according to actual working conditions. This product is not suitable for: gasoline, diesel, heavy oil, pure water.
application
For liquids with conductivity higher than 20μS/cm, suitable for distilled water
Features
● No moving parts for long life
● High tolerance for medium debris
● Flexible combination of multi-point monitoring (a single conventional unit can output 3 switches)
● Suitable for complex industrial control such as electroplating and sewage
