Introduction

Principle & Structure

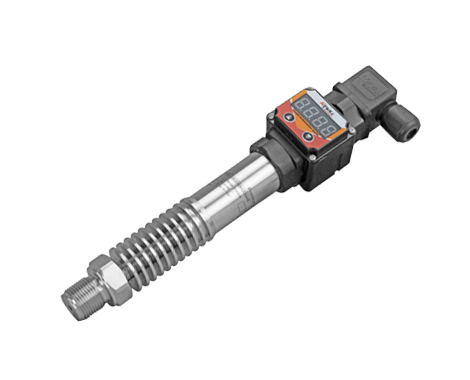

The LV62 high temperature hydrostatic level transmitter uses a silicon piezoresistive isolation diaphragm oil-filled core as the signal measuring element. The pressure of the measured medium is transmitted to the sensor through the heat dissipation structure on the transmitter, and the signal processing circuit located in the stainless steel shell , which converts the sensor signal to a standard output signal.

Features

Wide measurement range, all stainless steel structure, various pressure interface forms, protection grade IP65;

The output signal has various forms and can be adjusted on site.

application

Non-corrosive liquid level measurement on 316L stainless steel.

Used in petroleum, chemical, metallurgy, electric power, hydrology and other industrial process sites.

Ship and aviation industry.

Hydraulic and pneumatic control system.

technical parameter

Measuring range:

0~0.5m to 50m

Operating temperature:

'-20℃~150℃

O-rings::

fluororubber

Overload range:

Less than or equal to 1.5 times the rated range or 110MPa (whichever is the smallest)

Storage temperature: :

-40℃~120℃

cable:

polyethylene

Pressure Type:

Gauge pressure, absolute pressure, sealed reference pressure type

Power supply:

15~30VDC

Insulation resistance:

100MΩ 100VDC

Accuracy:

±0.25% (typ.) ±0.5% (max.)

output signal:

4~20mA

Enclosure rating:

IP65

Long term stability:

±0.1%FS/year (typical) ±0.2%FS/year (maximum)

Pressure port:

M20×1.5 G1/4 or user's choice

Zero temperature drift:

±0.03%F.S/℃(≦100KPa） ±0.02%F.S/℃(>100KPa）

shell material:

Stainless steel 1.43.1 (304)

Full-scale temperature drift:

±0.03%F.S/℃(≦100KPa） ±0.02%F.S/℃(>100KPa）

Diaphragm material:

Stainless steel 1.4435 (316L)

Standard range code table (unit bar)

(unit m, meter)		(unit cm, cm)
range value	Selection code	range value	Selection code
0...0.5m	M0.5	0…50cm	CM50
0...1 m	M1	0…100cm	CM100
0…2m	M2	0…200cm	CM200
0…3m	M3	0…300cm	CM300
0…4m	M4	0…400cm	CM400
0...5 m	M5	0…500cm	CM500
0…~m	M~	0…~cm	CM~
0…10m	M10	0…1000cm	CM1000
0…~m	M~	0…~cm	CM~
0…50m	M50	0…5000cm	CM5000
(unit mm, mm)
range value	Selection code
0…500mm	MM0.5
0…1000mm	MM1000
0…2000mm	MM2000
0…3000mm	MM3000
0…4000mm	MM4000
0…5000mm	MM5000
0…~mm	MM~
0…10000mm	MM10000
0…~mm	MM~
0…50000mm	MM50000
Note: If the required liquid level range is not in the standard list, the measurement range value can be set according to customer requirements and displayed on site or transmitted remotely. For example, the required liquid level height range: 5.5 meters, the liquid level range code can be written as M5.5; 250 cm, the selection code is CM250; 800 mm, the selection code is MM800.

Selection table

LV62-	High temperature hydrostatic level transmitter
	range
	M＿	Unit: m
	CM＿	Unit: cm cm
	MM＿	Unit: mm
		type of medium
		A	Water medium (nominal density 1.0X103㎏/m3)
		B	Oil or mixed medium (density needs to be noted when ordering)
			Process connection interface thread (external thread)
			G14	G1/4 *）
			G12	G1/2 *）
			M20	M201.5 （）
				Output signal type
				M4	4...20mA output (*)
					Electrical connections
						Hessman joint (DIN43650)
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
Remarks: (*) are in stock or standing.
