Introduction
principle

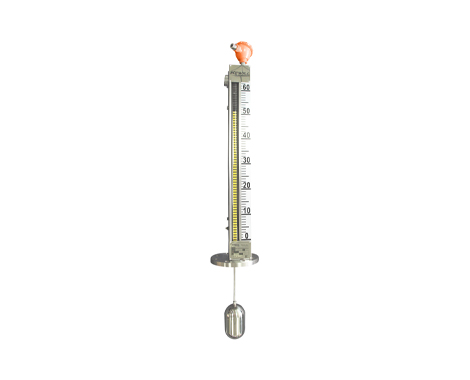

The LMT magnetic flip column level gauge consists of a body (composed of upper and lower conduits), a flap box (composed of red and white two-color magnetic small flip columns), a float (composed of a magnet, a mandrel, a float) and a liquid level transmitter. , the buoy in the container floats up and down with the change of the liquid level in the lower conduit, and the magnet floats up and down in the upper conduit through the ejector rod, which makes the magnetic flap outside the main body turn and indicates the liquid level with red and white colors. The liquid level transmitter transmits the liquid level signal to the control center for display or control.
application
The top-mounted magnetic flip-column level gauge is suitable for measuring various containers that are inconvenient to install the level gauge on the side, especially the level measurement in underground storage tanks. It is often used to measure crude oil, heavy oil, phenol and other media, and is widely used in electric power. , petrochemical, chemical, metallurgy, environmental protection, shipbuilding and other industries.
