Introduction
Principle & Structure

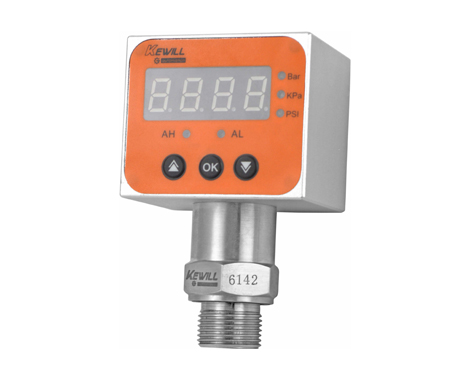

The KCP20 intelligent pressure switch is equipped with a high-precision instrumentation amplifier to amplify the pressure signal, and has a built-in temperature sensor for temperature compensation. It is a high-precision device that detects pressure and liquid level signals and realizes pressure and liquid level monitoring. Two built-in relays can meet the requirements of high and low point control of various gases and liquids. At the same time, it can realize various operation functions such as clearing, calibration, changing display units, and setting hysteresis. The shell adopts an all-metal structure, and the pressure-sensitive diaphragm adopts a stainless steel 1.4435 (316L) core with stable performance.
Features
4 digits display the current pressure or liquid level value; the pressure or liquid level can be set according to your own needs.
Two-way relay output, the alarm point can be set arbitrarily within the range, and there is no dead zone for adjustment.
Three pressure units are available: Bar, PSI, Kpa.
High precision, small hysteresis, fast response, stable and reliable, easy adjustment.
application
It is used in industrial process sites such as construction machinery, hydraulic power, electric power, environmental protection, automation control, hydraulic and pneumatic systems.
