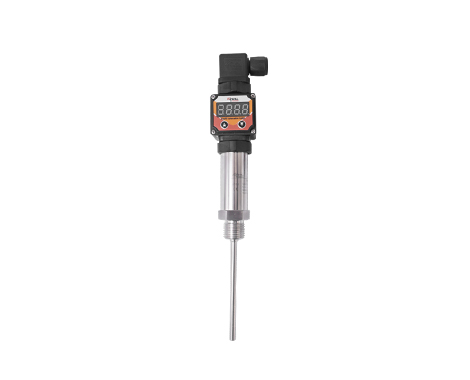

TK52 Series Digital Temperature Transmitter

Online Inquiry
Sample Application
Technical Support
Hotline:021-54430662

Introduction

Principle & Structure

TK52 series integrated temperature transmitter utilizes the principle of PT100 platinum thermal resistance. The integrated temperature transmitter integrates temperature detection and signal, with standard connector outlet, small size, and linearized output of 4~20mA or 1~5V standard signal .

Features

● Simple installation.

● Various ranges are available.

● Various specifications of probes are available.

● All stainless steel shell, compact and sturdy structure. Strong anti-interference ability.

● Standard way to exit.

application

Gas-liquid dual-purpose type, can be used in water supply system, hydraulic system, pneumatic system, cooling system, heating system, air conditioning system, automation engineering, etc.

technical parameter

Temperature measurement range:	-200~0°C,-100~0°C,-50~0°C, -50~50°C; 0~50°C; 0~80°C; 0~100°C; 0~120° C, 0～150°C, 0～200°C, 0～450°C, 0～500°C or any range specified by the customer
Accuracy class:	0.2%FS&0.5%FS
Probe size and withstand voltage:	?6 probe 10 bar
	?8 probe 40 bar
	?10 probe 100 bar
Protection class:	IP65
output signal:	4~20mA or 1~5VDC
Supply voltage:	20~30VDC
Ambient temperature:	-30~85°C
interface:	G1/2 G1/4
	Sanitary clamp type and other custom sizes
Electrical part material:	black NBR
Shell material:	Stainless steel 1.4301(304)
Material of the wetted part of the body:	Stainless steel 1.4435 (316L)
Protection tube material:	Stainless Steel 1.4301(304) & Stainless Steel 1.4435(316L)
Electrical connections:	Herssman joint (DIN43650)

Selection table

TK52-

Integrated temperature transmitter

output

4-20mA output

1-5V output

Probe diameter

?6 pressure 10 bar

?8 can withstand pressure 40 bar (*)

?10 up to 100 bar

Connection method

G1/2

G1/4

Sanitary clamp type

Customized

Probe length

7mm (short custom)

75mm

15mm（*）

100mm

25mm（*）

Customized

50mm

Way out

Aviation socket

Herssman joint (DIN43650)

temperature range

For details, please refer to "Regular Range Code Table"

The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.

Remarks: (*) marked as spot stock or fast delivery
