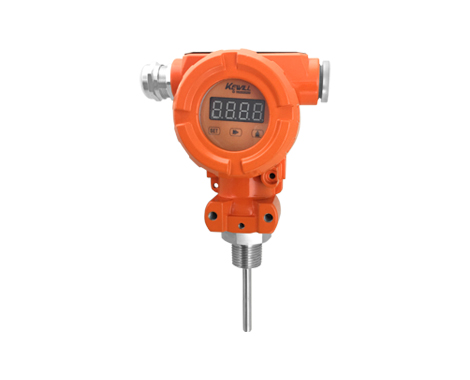

TK55A Series Digital Display Temperature Sensor

Online Inquiry
Sample Application
Technical Support
Hotline:021-54430662

Introduction

Principle & Structure

The TK55A digital temperature sensor integrates temperature detection and signal display, a variety of electrical wiring types to choose from, small size, and outputs PT100 or PT1000 standard signals.

Features

● Simple installation

● Various ranges are available

● Various specifications of probe optional

● All stainless steel shell, compact and sturdy structure, strong anti-interference ability

● Standard way to exit

application

Gas-liquid dual-purpose type, can be used in water supply system, hydraulic system, pneumatic system, cooling system, heating system, air conditioning system, automation engineering, etc.

technical parameter

Temperature and Accuracy
Measuring range:			50...200℃
Ambient temperature:			40℃...85℃
storage temperature:			30℃...75℃
Relative humidity:			0...80%
control precision:			≤±0.25%FS
Display accuracy:			±0.15FS
Display method:			Local display; LCD
			Local display; LED
			The remote signal can be matched with the display instrument (sold separately)
Sensors and Accuracy:			PT1000 Class A
			PT100 Class A
Annual drift:			≤ ±0.25% of range
Response time:			0.5...3s (typ. 1s)

Output power supply and wiring
Power Range:			DC 20...30Vdc (display purpose)
output signal:			PT1000 Class A
			PT100 Class A
Maximum power consumption:			＜3W
Electrical connections:			M20*1.5 internal thread
			Internal thread G1/2 flameproof interface
			M12*1 Aviation Plug

Pressure resistant material protection
Probe size and withstand voltage:			Φ6 probe 40 bar
			Φ8 probe 40 bar
			Φ10 probe 100 bar
Electrical compartment:			cast aluminum
Other shells:			Stainless steel 1.4301(304)
			Stainless steel 1.4435 (316L)
Protection class:			IP65

Applicable process connections
External thread:			G1/2
			G1/4
			M20*1.5
			M27*2
			Protocol customization

Selection table

TK55A-

Digital display temperature sensor

Signal output

PT100

PT1000

Probe Diameter (D)

Φ6 Pressure 40 bar (*)

Φ8 Pressure 40 bar

Φ10 pressure 100 bar

Threaded connection

G1/2

G1/4

M20*1.5

Customized

Probe length (L)

15mm（*）

25mm

50mm（*）

75mm

100mm（*）

Customized

Electrical outlet

Internal thread M20*1.5

Internal thread G1/2 flameproof interface

M12*1 Aviation Plug

temperature range

For details, please refer to "Regular Range Code Table"

Display method

On-site; LCD liquid crystal display

On-site; LED light-emitting digital tube

The remote signal can be matched with the display instrument (the display instrument needs to be purchased separately)

The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.

Remarks: "*" is marked as stock standing or fast delivery
