Introduction

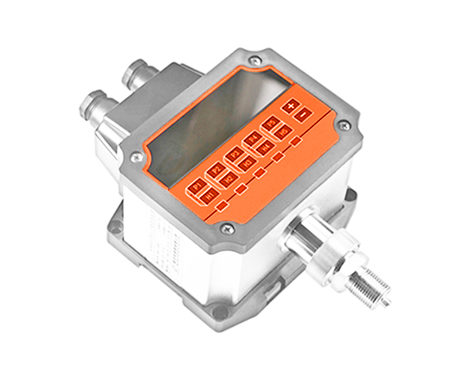

PE60 pressure/differential pressure transmission controller provides 5 relay outputs and 1 analog output, which are used in automatic pressure detection, action control, water level alarm, etc. of equipment, and realizes remote pressure measurement and control. When high frequency switching or high switching precision is required.

Features

● 14-segment LED display

● Button programming, easy to operate

● 5 independent 3A relay control points

● Switchable 4-20mA and 0-10V output form

● Record the highest pressure during the working process (can be cleared by pressing the button)

● Support four installation methods of base plate, guide rail, panel and joint

● Support 0~99s delay action setting

technical parameter

Output Data
Accuracy:≤±0.25%FS;≤±0.5%FS
Repeatability:≤±0.2%FS
show:Full 4 digits, 0.56-inch 14-segment digital tube display
Temperature Drift:≤±0.03%FS/℃ (zero point/full scale)
Analog output
Current type:4mA~20mA DC, load resistance≤560Ω
Voltage type:0V~10V DC, load resistance ≥10kΩ
Switch output
Type:5-way relay, normally open and normally closed contacts
Switching Voltage:≤277V AC;≤30V DC
Switching current:≤3A
Response time:Ms 1ms
Switch point settings:1.5%FS~99%FS
Hysteresis value setting:1%FS~10%FS
life:≥10 million times/minimum load; ≥100,000 times/maximum load
Switching delay:0s~99s
environmental conditions
Operating temperature:-25℃~65℃ / -13℉~149℉
Relative humidity:0%~85%
storage temperature:-40℃~70℃ / -40℉~158℉
Medium temperature:-20℃~80℃ / -50℉~176℉
Electromagnetic Compatibility:LVD 2006/95/EC&EMC 2004/108/EC
Vibration:≤5g/10Hz…500Hz(IEC 60068-2- 6-2007)
Shock:≤10g/11ms(IEC 60068-2-27-2008)
Input data
powered by:(220±44)V AC/ 22V~32V DC
Range:0kPa~10kPa… 60MPa
Overpressure:1.5 times full scale pressure
Static pressure:20MPa

Selection table

PE60A-Intelligent pressure controller
PE60B-Intelligent pressure controller

range

Gauge pressure (see range code table for range)

Absolute pressure (see range code table for range)

Differential pressure (see range code table for range)

Power supply

22V~32V DC

220V AC

output form

Five-way relay output + analog output (4mA ~ 20mA DC)

Five-way relay output + analog output (4mA~20mA DC / 0V~10V DC multiplexing)

Process connection

G1/2 external thread

M20×1.5 external thread

G1/4 female thread pressure port (KAP60B)
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
