Introduction

Principle & Structure

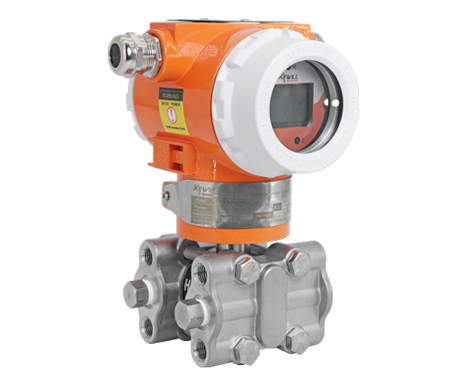

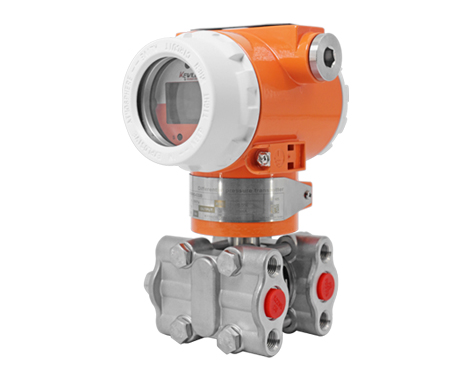

PE-T series differential pressure transmitter is based on ceramic capacitor technology. When the differential pressure value added to the ceramic capacitor increases, the capacitance value increases accordingly, and the capacitance value is proportional to the differential pressure value.

Features

High-precision, high-stability, high-reliability full series of unified structure design, strong interchangeability. The material of the diaphragm in contact with the medium can be selected arbitrarily, and the zero point and range can be continuously adjusted outside. Small size (169mm high), light weight (2.9kg), good one-way overload protection, pointer or digital field indicator. Reverse polarity protection and current limit protection. Intrinsically safe explosion-proof or flameproof (option).

application

Gas-liquid dual-purpose type, can be used in hydraulic and pneumatic systems. Applicable to the following industries:

Industrial Automation, Machinery, Air Compression Industry, Refrigeration and Air Conditioning, Hoisting and Transmission Systems.

technical parameter

Range:See the table below for details
Accuracy class:±0.25% (differential pressure ±0.5%) range
Linearity:±0.2% or ±0.5%
Repeatability:≤±0.1% of range
Temperature effects:<±0.02%FS/K
Operating Voltage:12~36V DC
Current consumption:≤1KΩ
Electrical Protection:Signal current (two-wire type), 8mA (three-wire type)
ambient temperatureIP65
Medium temperature:Die Cast Aluminum
storage temperature:≤1KΩ
Protection class:Signal current (two-wire type), 8mA (three-wire type)
Wetted part material:IP65
Sealing material:Die Cast Aluminum
repeat:2.9kg

Selection table

PE-T-Differential pressure transmitter

Range code

0…+0.1bar

0…+0.2bar

0…+0.25bar

0…+0.3bar

0…+0.4bar

0…+0.5bar

0…+0.6bar

0…+1bar

0…+1.6bar

0…+2.5bar

0…+4bar

0…+6bar

0…+10bar

0…+16bar

0…+25bar

0…+40bar

0...+60bar

0…+100bar

0...+160bar

0…+250bar

0...+400bar

Interface thread

Threaded interface NPT1/4 internal thread (can be customized according to user requirements)

Connection method

internal thread

Signal output

Analog output signal 4~20mA
Note: 1bar=1.02kg/cm2=0.1Mpa can be supplied according to the range required by the user
The complete data of this selection table, please contact the sales staff or email to sales@kewill-auto.cn for complete samples.
